STANAG 3910

STANAG 3910

The desire to increase the transmission rate from 1Mbit/sec motivated the evolution of STANAG 3910 which is able to provide 20M bit/sec Data rate.

Its has capacity to transmits 132 blocks of 32 words which includes 4096 words. whereas MIL-STD-1553B has only capacity to send 32 words.

It has 31 remote terminal as MIL-STD-1153B has.

its can be interface with MIL-STD-1553B by using starter coupler. A bus controller encodes the instructions by Manchester Encoding

MONO PULSE TRACKING

MONO PULSE TRACKING

Mono pulse tracking technique is the most preferred technique which determines on the basis RETURNS PULSE rather than beam sequences such a Sequential lobing and Conical Scan.

What a Navigation

n The Traffic Alert and Collision Avoidance System (TCAS) has had

extraordinary success in reducing the risk of mid-air collisions. Now mandated on

all large transport aircraft, TCAS has been in operation for more than a decade

and has prevented several catastrophic accidents. TCAS is a unique decision

support system in the sense that it has been widely deployed (on more than

25,000 aircraft worldwide) and is continuously exposed to a high-tempo, complex

air traffic system. TCAS is the product of carefully balancing and integrating

sensor characteristics, tracker and aircraft dynamics, maneuver coordination,

operational constraints, and human factors in time-critical situations. Missed

or late threat detections can lead to collisions, and false alarms may cause pilots

to lose trust in the system and ignore alerts, underscoring the need for a robust

system design. Building on prior experience, Lincoln Laboratory recently

examined potential improvements to the TCAS algorithms and monitored

TCAS activity in the Boston area. Now the Laboratory is pursuing new collision

avoidance technologies for unmanned aircraft.

WOOOO HOOOO RADAR PROJECT 25/25

WOOO HOOOO Got 25/25 in Radar Project

Avivoncs System

One of the important avionics structures is Electronic Combat

Electronic Combats is the four elements Structure which are as followed:

1)Electronic Warfare (EW)

2) SEAD

3) FEBA

4)C4 ICM

Radar is an Electromagnetic system for detecting and locating reflecting objects such as aircraft,ships,spacecraft,vehicles,people and natural environment.Radars system is such a classic system that includes all domain of electronics engineering  control system such as

•Electromagnetic
•Analog & Digital Electronics•Analog & Digital Communication•Microwave & Radiating Systems•Transmitters & Receivers •Signals &Data processing•Control Systems•Information & Detection Theory

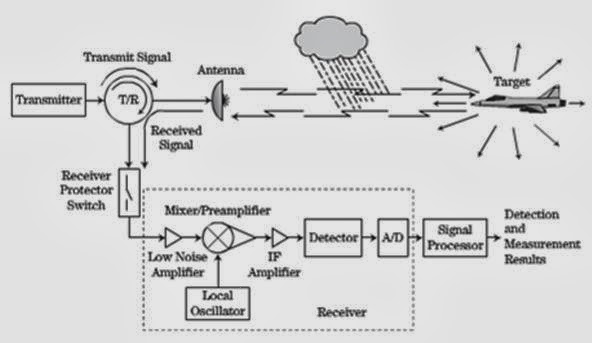

The Basic Concept of Radar:
